Once the slider is locked in position, the comparator has frictionless motion and zero free play. The electrolimit comparator stand is a dual rod design that is considerably stiffer than other single rod designs. A configurable general purpose anvil (optional) provides point contact support for measuring the three geometry types.

Source: www.taiwantrade.com

44,000m2 floor area of buildings: The gauge block calibration of inspection grade gauge block and workshop grade gauge block that is used for manufacturing industries are usually done by mechanical comparison using a mechanical comparator.

Source: www.amazon.com

It automatically compares workpieces with a standard gage block and determines accuracies of such as central length, maximum length, minimum length, and parallelism through the operation of an optional personal computer. These gauge blocks have higher measurement uncertainty compared to the higher gauge block grades where the calibration method is conducted by interferometric.

Source: bullseyecalibration.com

Variation of the thermal expansion coefficient of gauge block steel with temperature. Reference standards 4.1 the gauge block comparator shall be calibrated by means of gauge blocks, preferably using 6 pairs of typically the following lengths:

Source: bullseyecalibration.com

Simple electrical comparator electro limit gauge. The gauge block calibration of inspection grade gauge block and workshop grade gauge block that is used for manufacturing industries are usually done by mechanical comparison using a mechanical comparator.

Source: www.scicron.co.th

4 mitutoyo miyazaki plant company outline foundation: Once the slider is locked in position, the comparator has frictionless motion and zero free play.

Source: www.sumipol.com

Mechanical comparison calibration of gauge blocks with dissimilar materials at the highest level is not wide spread. You will also love the fact that our gage block comparators are manufactured and designed to calibrate at a resolution of.0000001 inch,.0000002 inch,.0000005 inch, and more to handle the full range.

Source: metrology.en.taiwantrade.com

The electrolimit comparator stand is a dual rod design that is considerably stiffer than other single rod designs. October 1985 number of employees:

Source: www.indiamart.com

It is specifically designed for the measurement of gage blocks by comparison, with no compromises made. Long gauge block (> 100 mm) short gauge block (≤100 mm) untuk grade 00/k dan grade 0.

4.1 The Gauge Block Comparator Shall Be Calibrated By Means Of Gauge Blocks, Preferably Using 6 Pairs Of Typically The Following Lengths:

Gage blocks / slip gauges; Gauge block comparator (mahr 826). Any electrical comparator works on the principle of electron limit gauge or measuring head the setup is as shown as below:

In This Case Gauge Block Was Put On The Comparator Table At 10:41 And At 10:50.

The electro limit comparator is the ultimate comparator for measuring flat, cylindrical, and spherical objects. Variation of the thermal expansion coefficient of gauge block steel with temperature. Angle block (reflective) roughness specimen set.

Calibration Of This Gauge Block Was Finished.

Mitutoyo gauge blocks are used throughout the world for their extreme precision. Optical flat plug gauge / pin gauge. Reference standards 4.1 the gauge block comparator shall be calibrated by means of gauge blocks, preferably using 6 pairs of typically the following lengths:

Differential Probing System From Mahr.

Calibration of gauge blocks for central length & parallelism by 5 point calibration method. Electronic level / electronic inclinometer. The vertical slider employs kinematic contact to ensure minimal position change when locking the slider.

Simple Electrical Comparator Electro Limit Gauge.

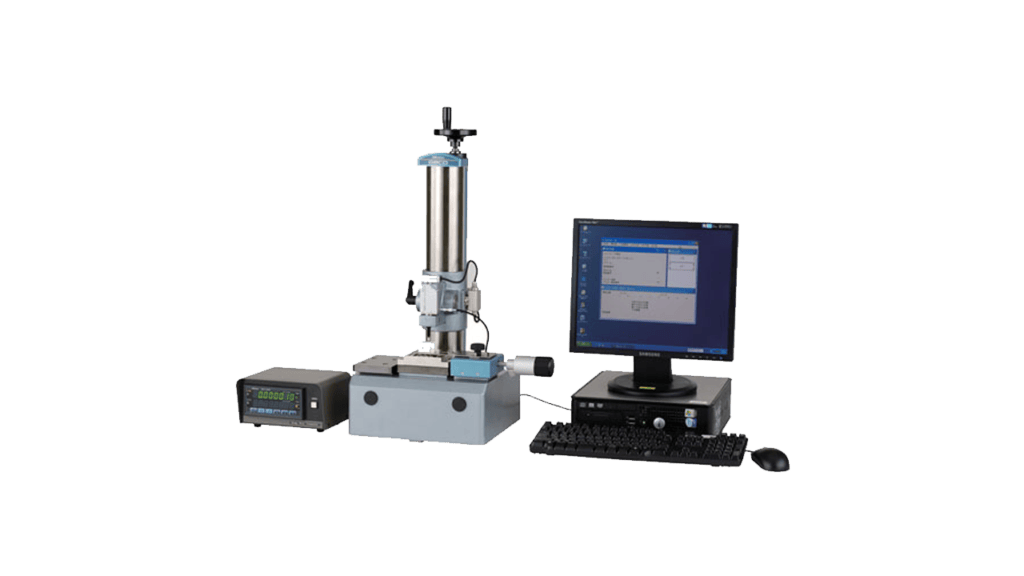

The gauge block comparator comprises the measurement pedestal, the measurement table with the gauge block positioning device, two length indicators connected to an electronic measuring instrument with numerical display and a digital interface, if necessary. These gauge blocks have higher measurement uncertainty compared to the higher gauge block grades where the calibration method is conducted by interferometric. It automatically compares workpieces with a standard gage block and determines accuracies of such as central length, maximum length, minimum length, and parallelism through the operation of an optional personal computer.
